Editing the Aggregated Table Element

We will now edit the contents of the aggregated table.

1. Right-click the Aggregated Table element and choose Design, or right-click the aggregated table element in the Report toolbox and then choose Edit (or double-click the element in the toolbox).

Note: If you right-click the element and choose Design, the Save button (see the figure below) will be replaced by an OK button. In this case, when you have made some changes to the table you must first click the OK button to return to the Page Editor, then click the Save button on the Page Editor to save the changes.

The Table Designer page opens . Here you design the table by dragging the required data elements from the Data Source toolbox and dropping them into the table cells, then setting properties.

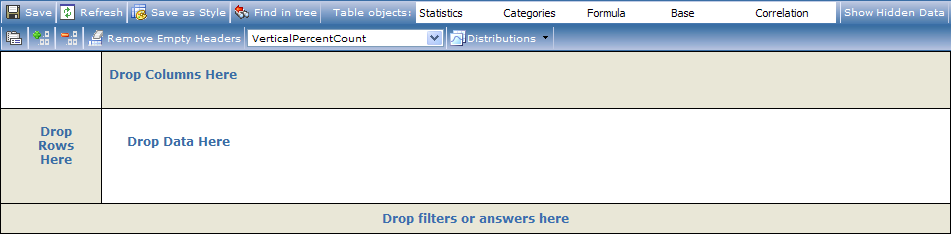

Figure 1 - The aggregated table designer

2. Drag the relevant question (in this case q7 Favorite) from the Data Source area on the left, and drop it into the Drop Rows Here cell in the designer.
3. Similarly, drag and drop the other question (here, the q3 Gender question) into the “Drop Columns Here” cell.
4. Click on the Refresh button to see a preview of your table . (Go to Table Designer Overview for more information.)

The figure below shows a preview of the table.

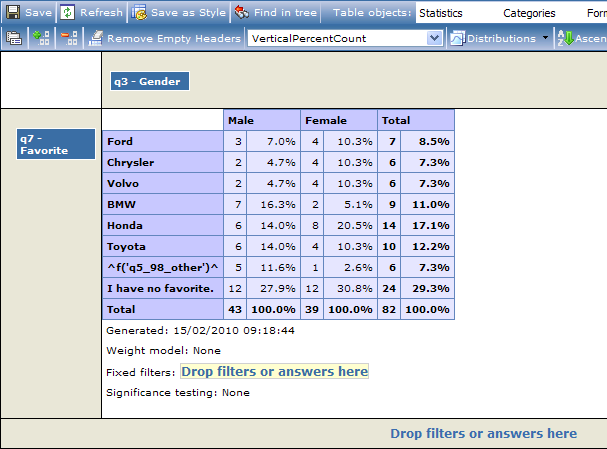

Figure 2 - Preview of the table

5. Click Save in the top left corner of the page to save your work (or OK then Save).

Click on a data cell in the table to open a Cell Information window (go to Cell Information Window for more information).
