Forsta Reportal enables you to tailor your reports to achieve any look-and-feel. The reports however do not have to be customized. This and the associated articles demonstrates how you can build a standard report using predefined settings, styles, layouts and templates already stored in Forsta Reportal.

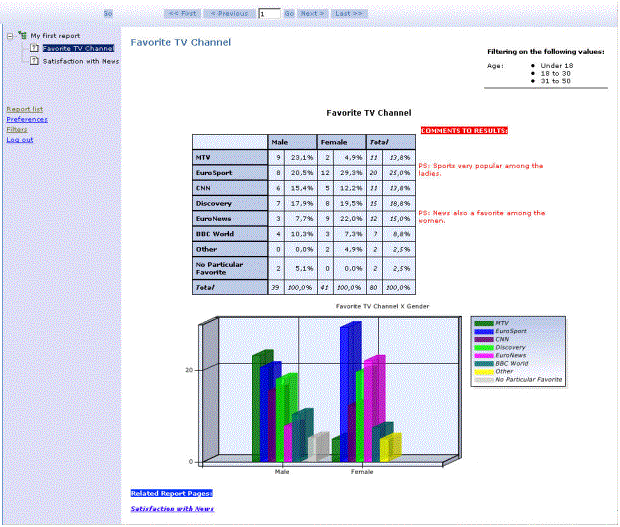

The figure here shows an example of a standard predefined Report Page.
Figure 1 - Standard Report Page
The various elements on the page are ashere follows:

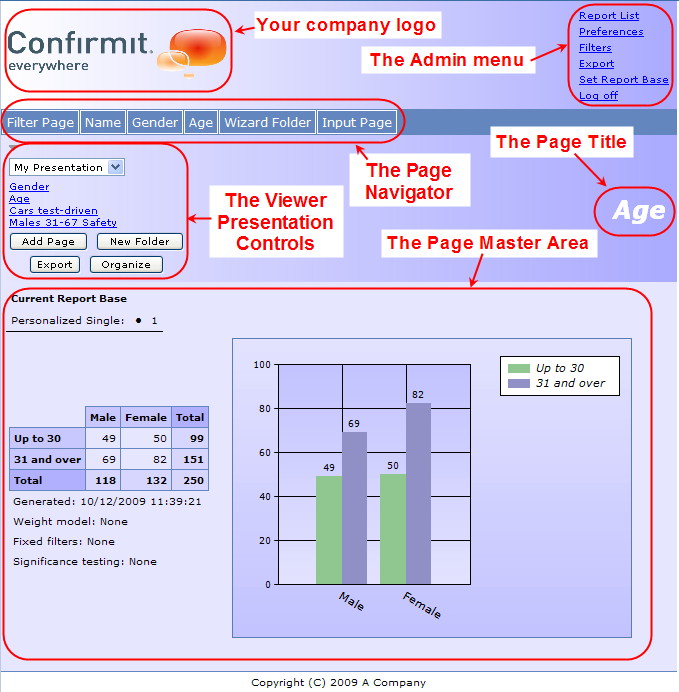

Figure 2 - Standard Report Page with identifiers
The page as shown in the figure hereabove is based on the Report Master shown below.

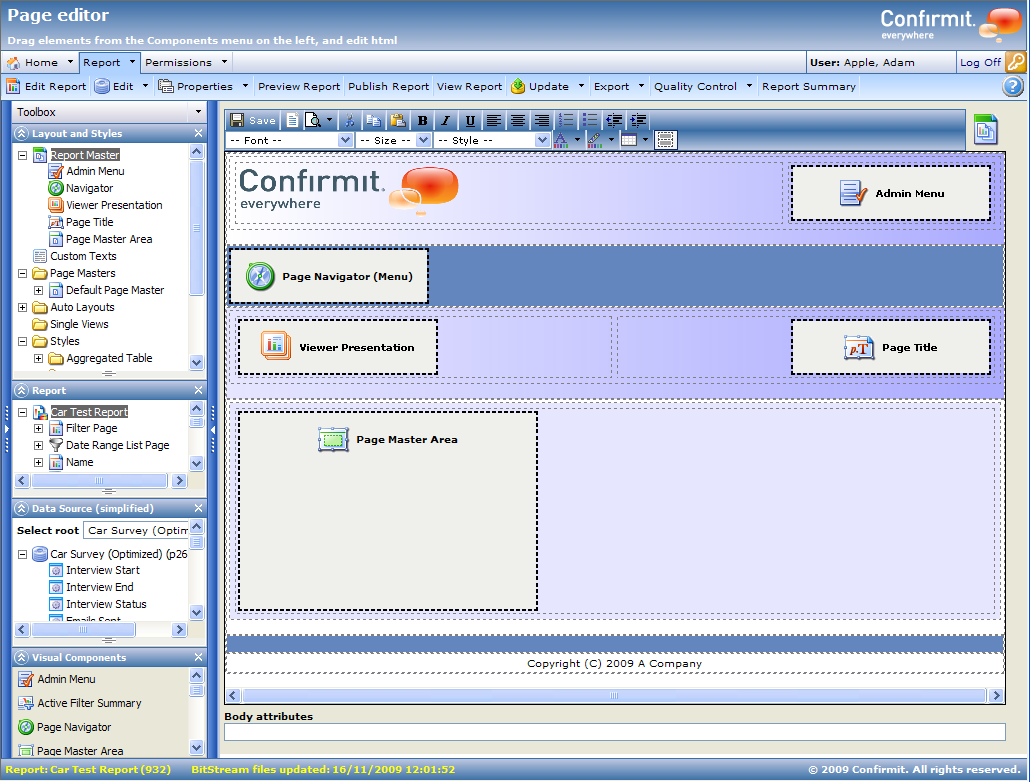

Figure 3 - Example of a Report Master
The figure here shows the “Page Master Area,” which is a part of the Report Master. To open the Page Master page editor, double-click on the appropriate item under the Page Masters folder in the Layout and Styles toolbox.
The Page Master area of the report page
The figure here shows an example of the “Page Design Area,” which is a part of the Page Master.
Example of the Page Design area for a report page
