The Header Masking tab allows you to hide, in the chart, elements that are included in the table, so that even though the table may be large you can have the chart display only the information you wish to see . See the table below as an example:

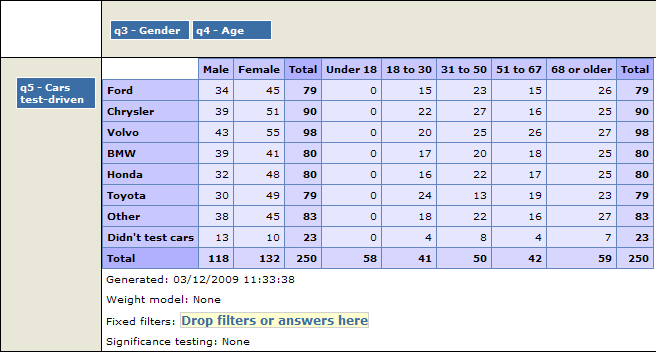

Figure 1 - Table with two elements in Columns
This is the same table as in the previous article except that the Age question is added. This now gives the following chart .

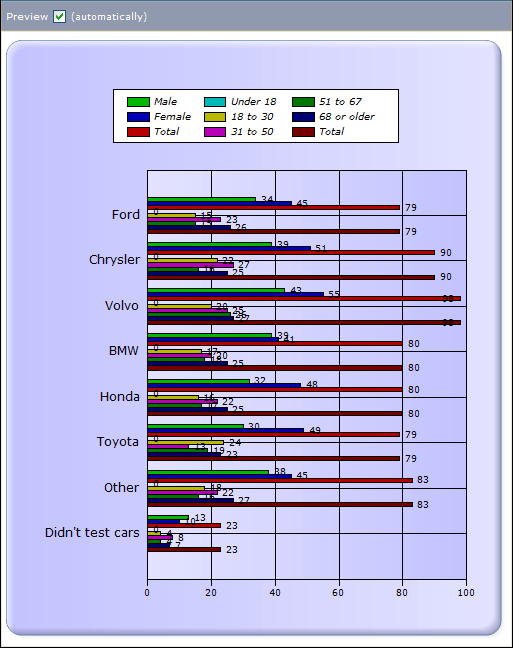

Figure 2 - Chart based on a cross-tab with three elements
The chart shows Distribution and Total for all three questions and it has become rather crowded. The Header Masking tab lists all the questions that have been used to create the table .
Figure 3 - Header Masking
Check the questions that you wish to hide in the chart. In this case Gender is selected, so the question is removed .

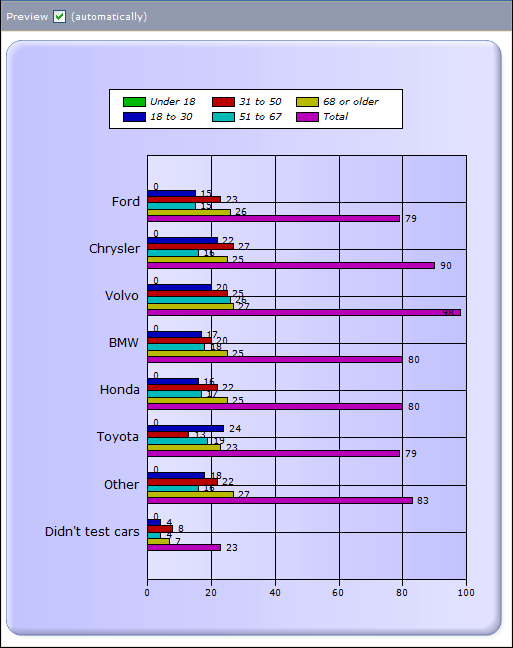

Figure 4 - The chart when Gender is masked
