In this article
Highcharts gives possibilities for improved chart appearance, additional interactive capabilities and simplified data selection.

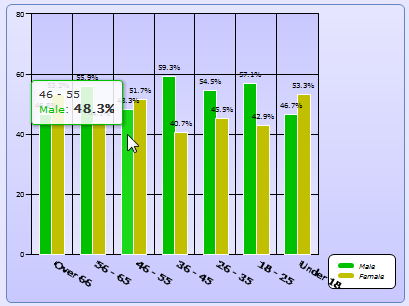

- Hover the mouse pointer over points in the chart to display the values .
Figure 1 - Hovering over a series to display the values
- Click on the chart legend to hide and show the displayed series .
The Male series has been toggled off

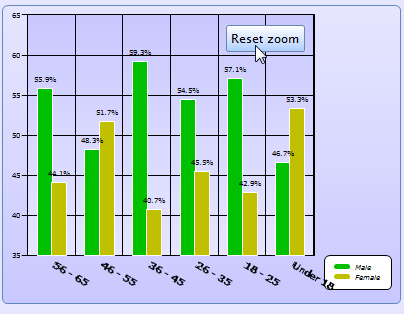

- Drag on the chart to zoom in on an area, then click Reset zoom to return to the full view .
Figure 2 - Zooming in on a part of the chart

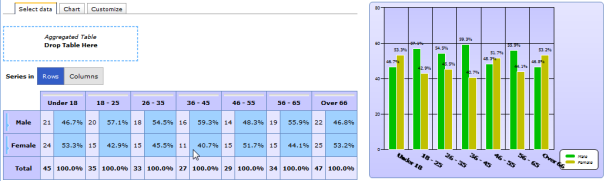

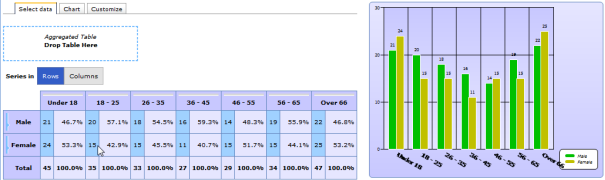

- If you have more than one distribution available in the table, for example count and vertical percent, you can click in a cell to select that distribution to be presented in the table . Note that this only affects the presentation in the chart; no changes are actually made to the table or the data contained in the table.
Figure 3 - Click in the table to select which distribution is to be presented in the chart
