String Response Parameters

Masking String Response Parameters

Simple Single String Response parameter mask

mask.Access = ParameterAccessType.Exclusive; //This declares the mask excludes the code
{mask.Keys.Add('pie');} //Then the precode to be excluded is added

This script masks out the 'Pie' style from the list of chart styles.

A Single String parameter being masked

You can also expand this to check scenarios before implementing for example:

An advanced Single String Response parameter mask based on table cell values

//------------Parameter Scripting MASK----------------//
mask.Access = ParameterAccessType.Exclusive;
if(report.TableUtils.GetCellValue('CA',1,1).Value==0) {mask.Keys.Add('1');}
if(report.TableUtils.GetCellValue('CA',2,1).Value==0) {mask.Keys.Add('GS1');}
//The above checks table CA, row 1 column 1, row 2 column 1 to see if the value is "0" before excluding the code

A Multi String Response parameter mask

var multiResponseA : ParameterValueMultiSelect = state.Parameters["p_Country"];
//Linking the Multi parameter the the MultiSelect class
var responseA : ParameterValueResponse;
//Creating a variable to hold the selected parameter responses
var country : String = "";
//An array to hold the precodes
//checking if there are any answers in the country parameter
if(multiResponseA != null)
   {
   for(var x : int = 0; x < multiResponseA.Count; x++) //running a for loop to go through answers
      {
      responseA = multiResponseA[x];
      country += "'";
      country += responseA.StringValue;
      country += "'";
      }
   }
text.Output.Append(country);//printing the selected answers to screen

The script above displays the list of corresponding cities when one or more countries are selected:

Figure 1 - A Multi String Parameter being masked.

Setting a Single String Response parameter with a fixed response

if(state.Parameters.IsNull("p_yn"))
{
state.Parameters["p_yn"] =new ParameterValueResponse("1"); //1 is yes
}

In the example above, '1' is the set code for parameter 'p_yn' when the page is loaded.

Setting a Single String Response parameter with a given response from the viewer

if(!state.Parameters.IsNull("p_Gender")) //Checking if parameter is not empty
{
var Gender : String = state.Parameters.GetString("p_Gender"); //Getting the value
state.Parameters["p_Gender"] =new ParameterValueResponse(Gender); //Assigning the value
}

Setting a Multi String Response parameter

if(state.Parameters.IsNull("p_Channel")){ //Check if the parameter is empty
var valArr : ParameterValue[]; //Create an array
//Create and assign values for the array
var val1 : ParameterValueResponse = new ParameterValueResponse("1");
var val2 : ParameterValueResponse = new ParameterValueResponse("2");
var val3 : ParameterValueResponse = new ParameterValueResponse("5");
valArr = [val1, val2, val3]; //assign the values to the array
// Get the value from above for populating the parameter
var multiResponse : ParameterValueMultiSelect = new ParameterValueMultiSelect(valArr);
//Set the new value
state.Parameters["p_Channel"] = multiResponse;}

The script above sets several parameter values when none of the parameter values have been selected.

Figure 2 - Setting new Multi String Response parameter values

Clearing String Response Parameters

Set parameter values can be cleared via a script and a Button control.

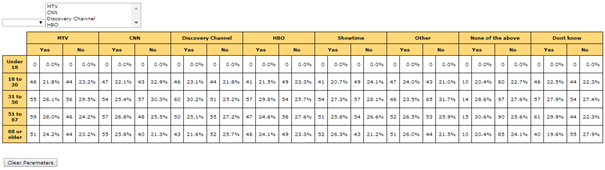

Figure 3 - Parameter values before clearing

Clearing all parameter values on a page

if(page.SubmitSource == "Button (1)"){state.Parameters.Clear();}

Figure 4 - Parameter values after clearing

Alternatively, for individual parameter clearance, a statement like the one below can be used ('p_age' is the name of the parameter to be cleared):

state.Parameters["p_Age"] = null;
